In [1]:

from eralchemy import render_er
from biokb_coconut.db.models import Base
import os
from eralchemy import render_er
from eralchemy.cst import dot_crowfoot, dot_digraph

dot_crowfoot()
dot_digraph()

from eralchemy import render_er from biokb_coconut.db.models import Base import os from eralchemy import render_er from eralchemy.cst import dot_crowfoot, dot_digraph dot_crowfoot() dot_digraph()

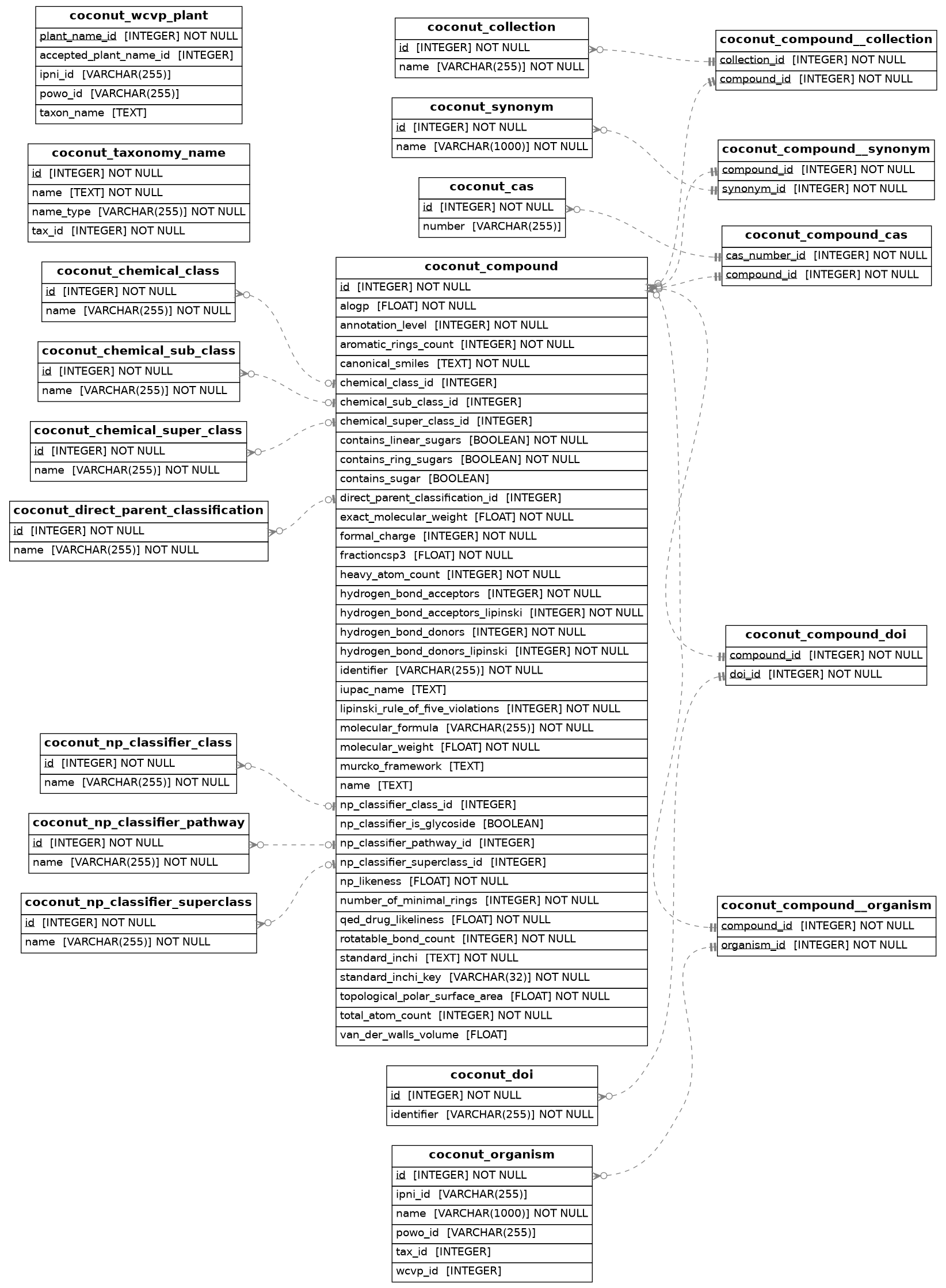

Entity-relationship diagram¶

This notebook is used to generate an entity-relationship diagram from the SQLAlchemy models defined in the biokb_coconut package.

In [2]:

render_er(Base, os.path.join("..", "imgs", "erd_from_sqlalchemy.png"))

render_er(Base, os.path.join("..", "imgs", "erd_from_sqlalchemy.png"))
